Thrive EVO™—Reliable Irrigation Made Easy
Introducing cutting-edge irrigation solutions designed to simplify your landscaping without the hassle.
Thrive EVO™ — The Smart Solution

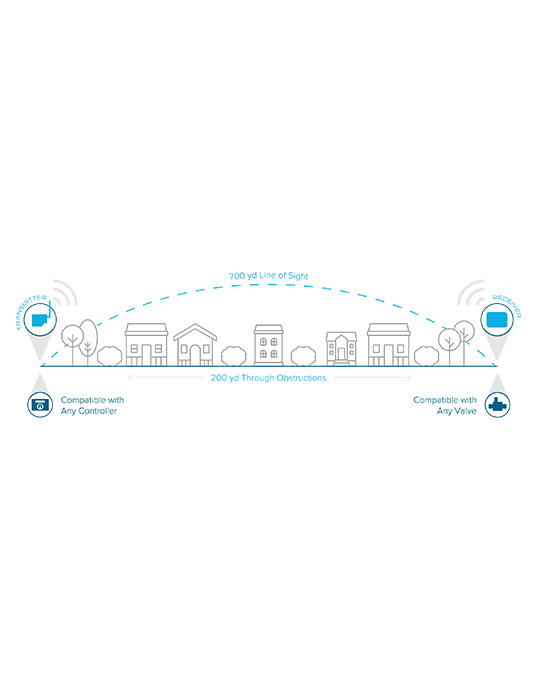

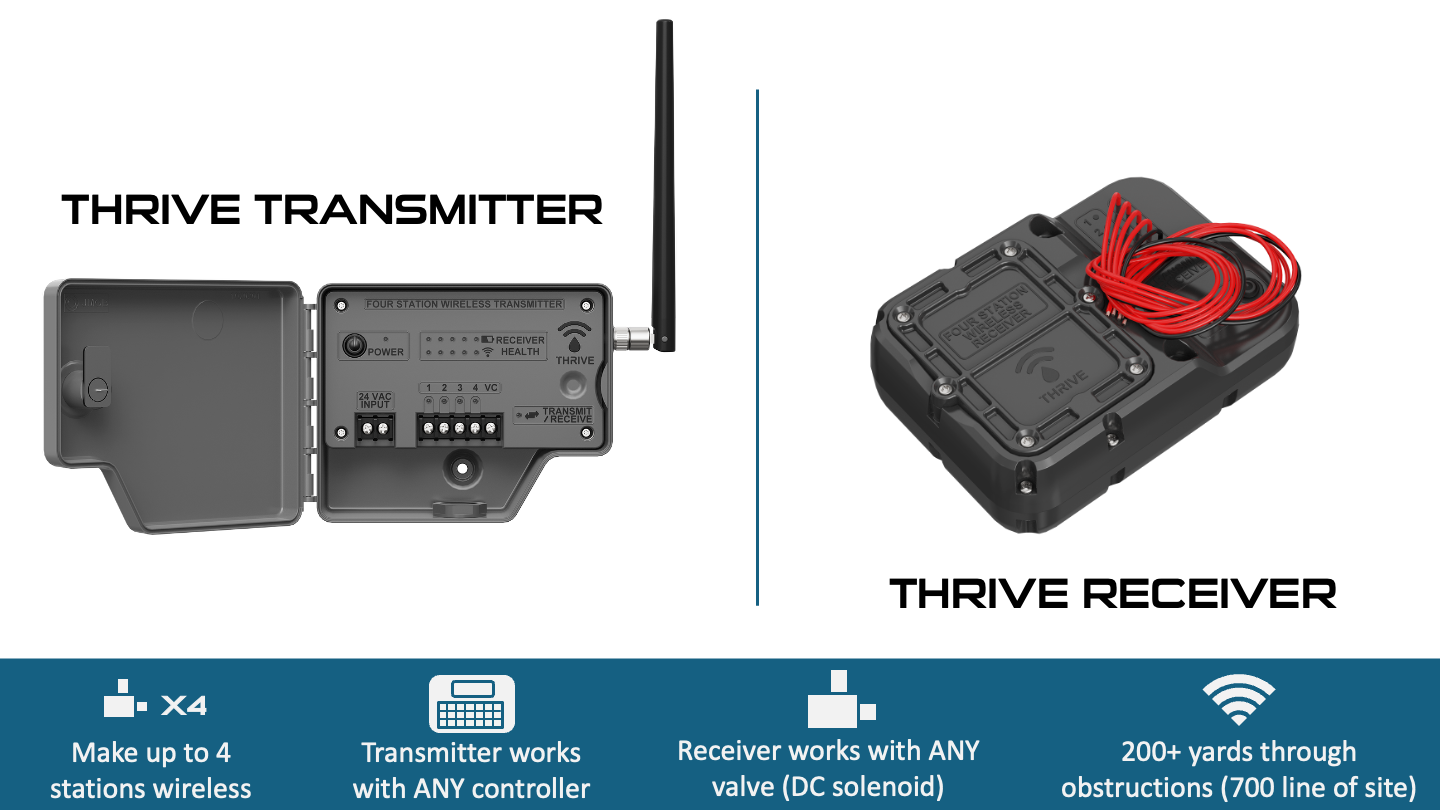

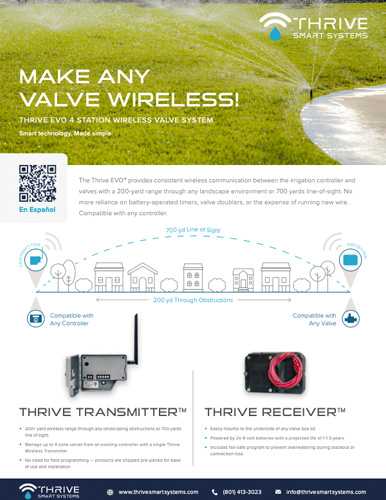

Thrive Evo, featuring a Transmitter and Receiver, eliminates the need for wires between your irrigation controller and valves. The Transmitter connects to any irrigation controller (multi-wire or two-wire), while the Receiver is compatible with any 9V DC valve solenoid. Provides a wireless range of 200 yards through obstructions (700 yards in line of sight).
Ideal for:
- Replacing lost or damaged wire paths
- Adding zones to existing systems
- Replacing battery-operated timers to centralize your system
No programming or pairing is required. Keep your existing system… simply connect and go wireless.
No trenching. No wires. No limits.

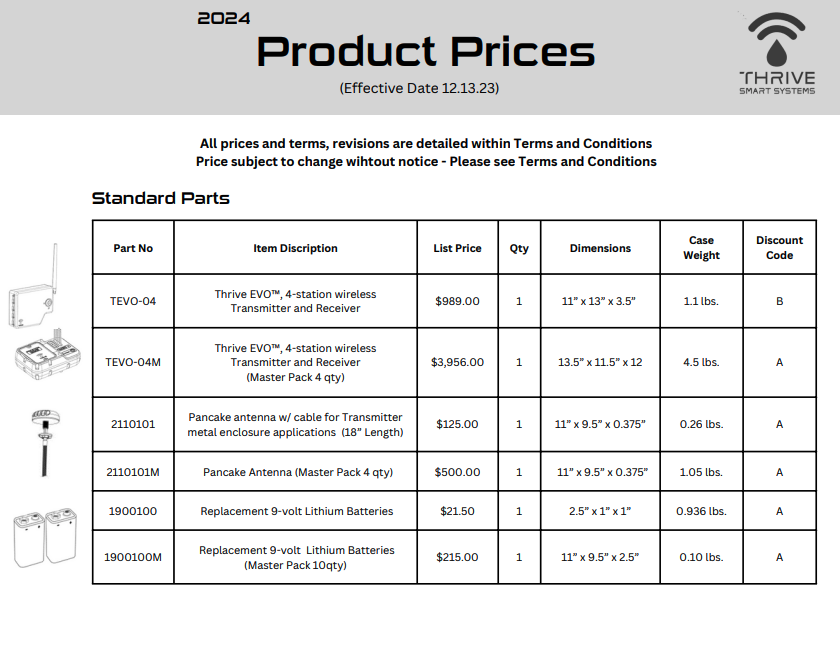

Get Pricing Become a Distributor
Thrive EVO™ Range

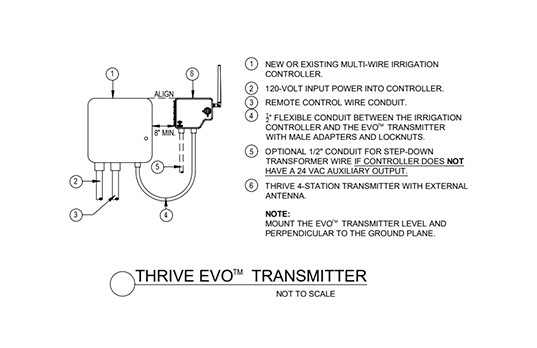

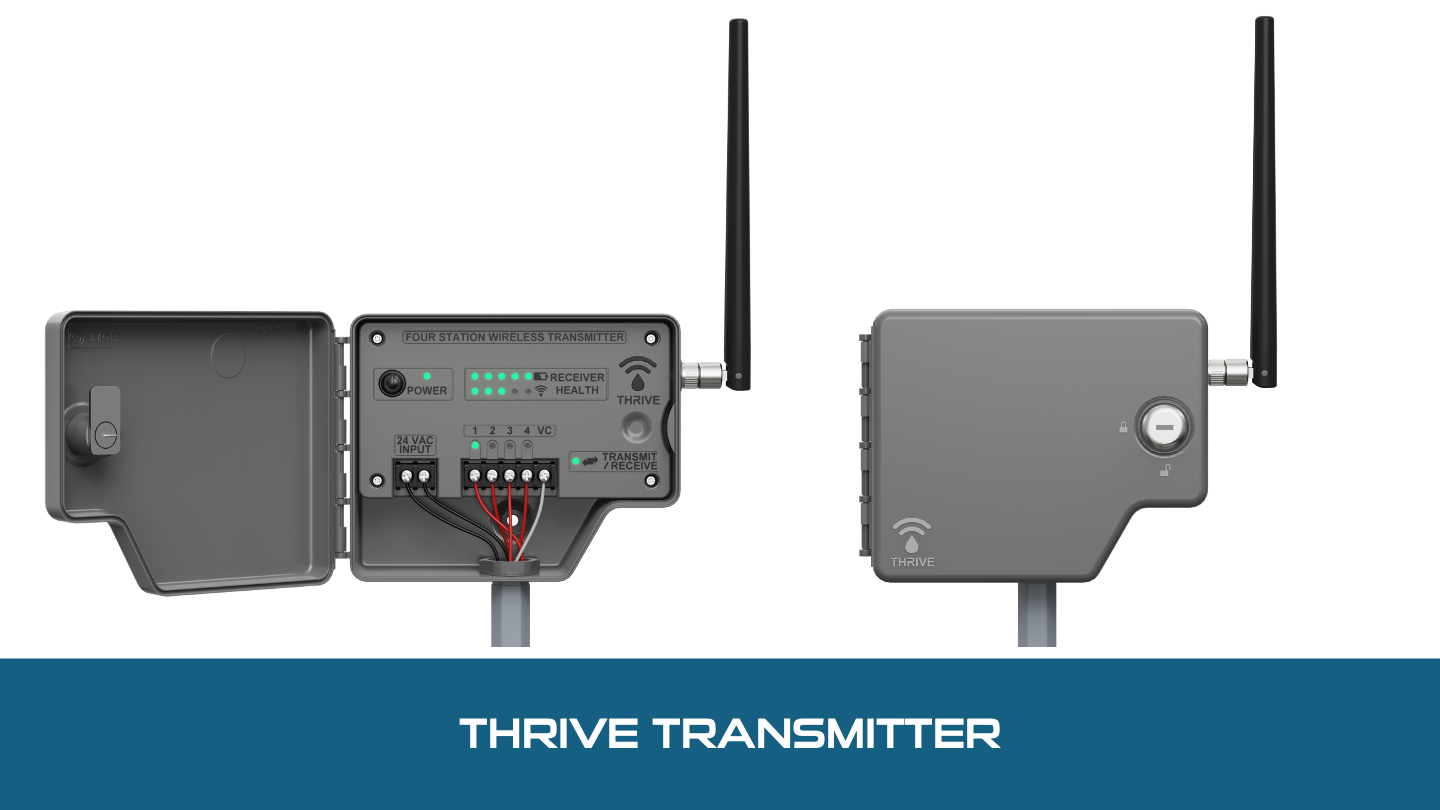

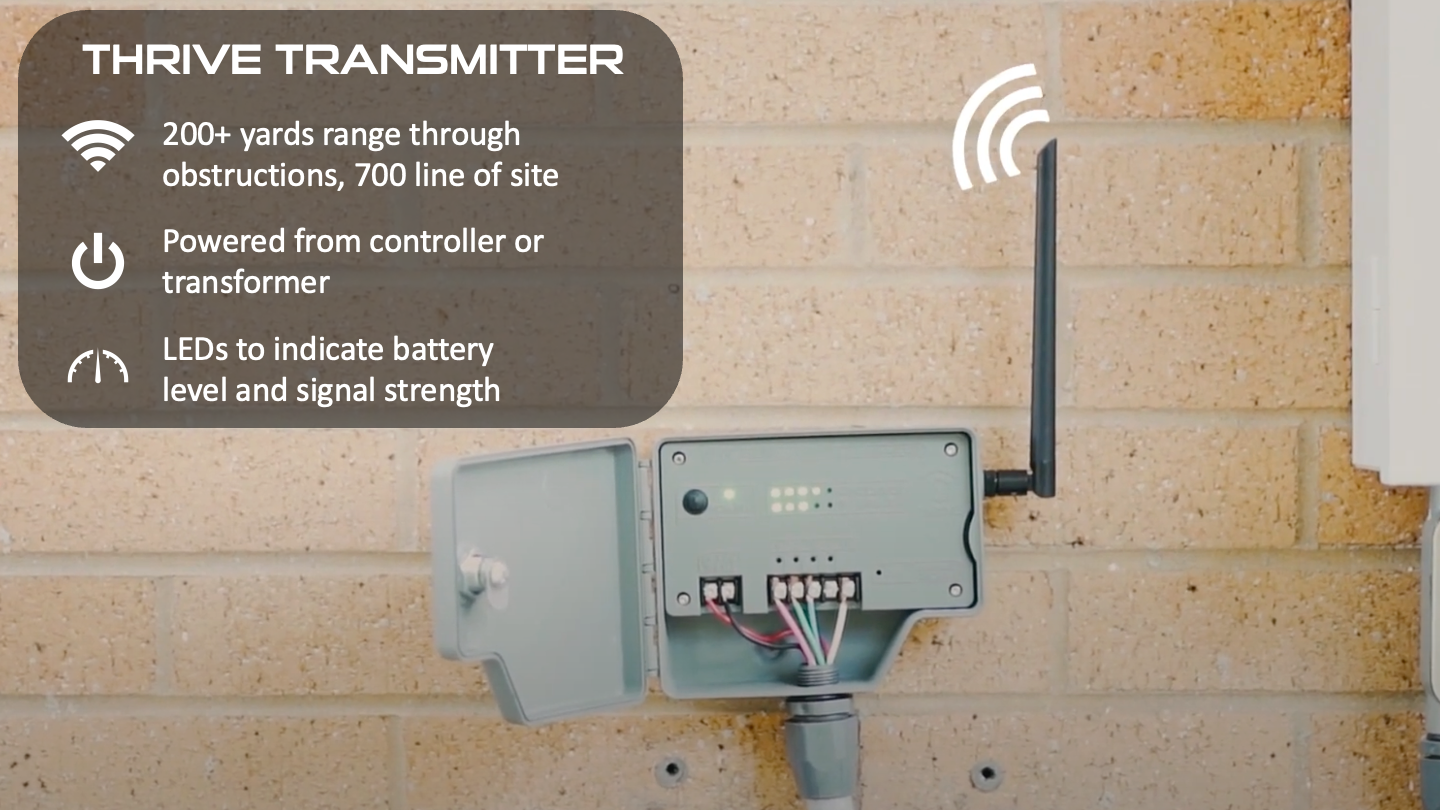

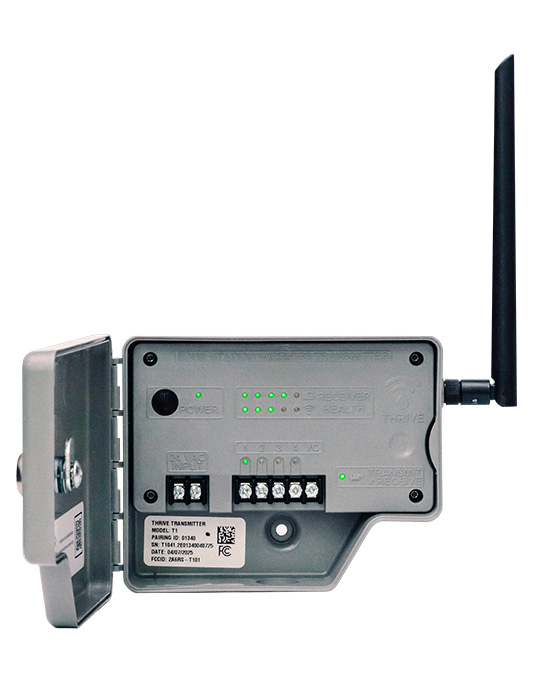

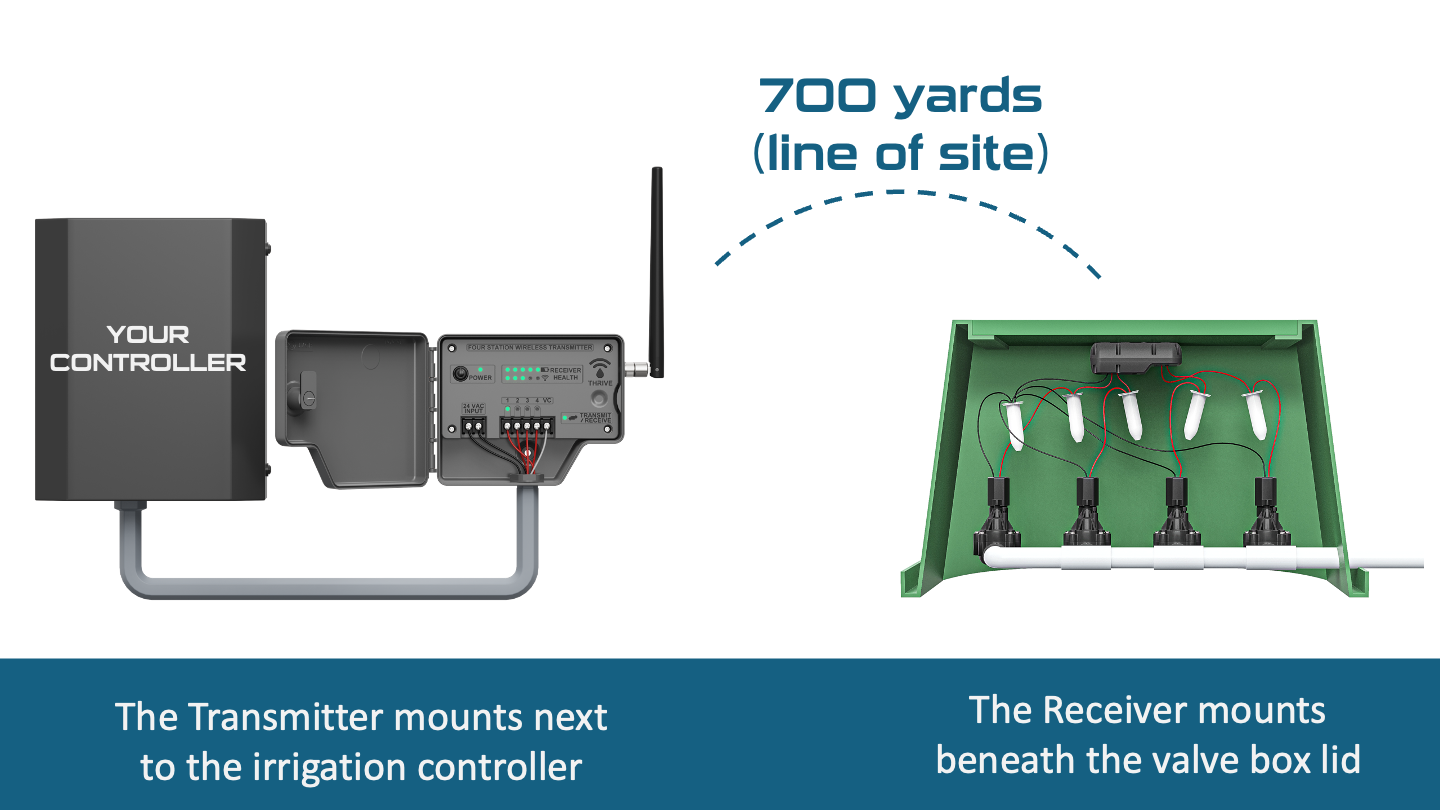

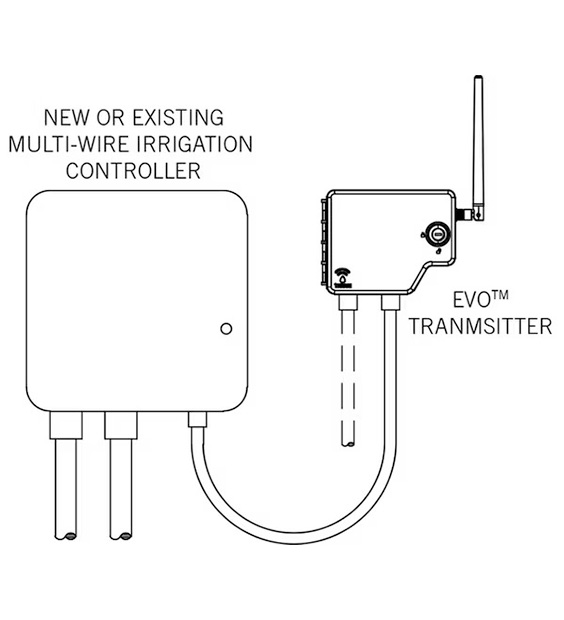

The Thrive Transmitter is mounted beside the existing irrigation controller, and any stations the user wants wireless are wired to the Transmitter terminals.

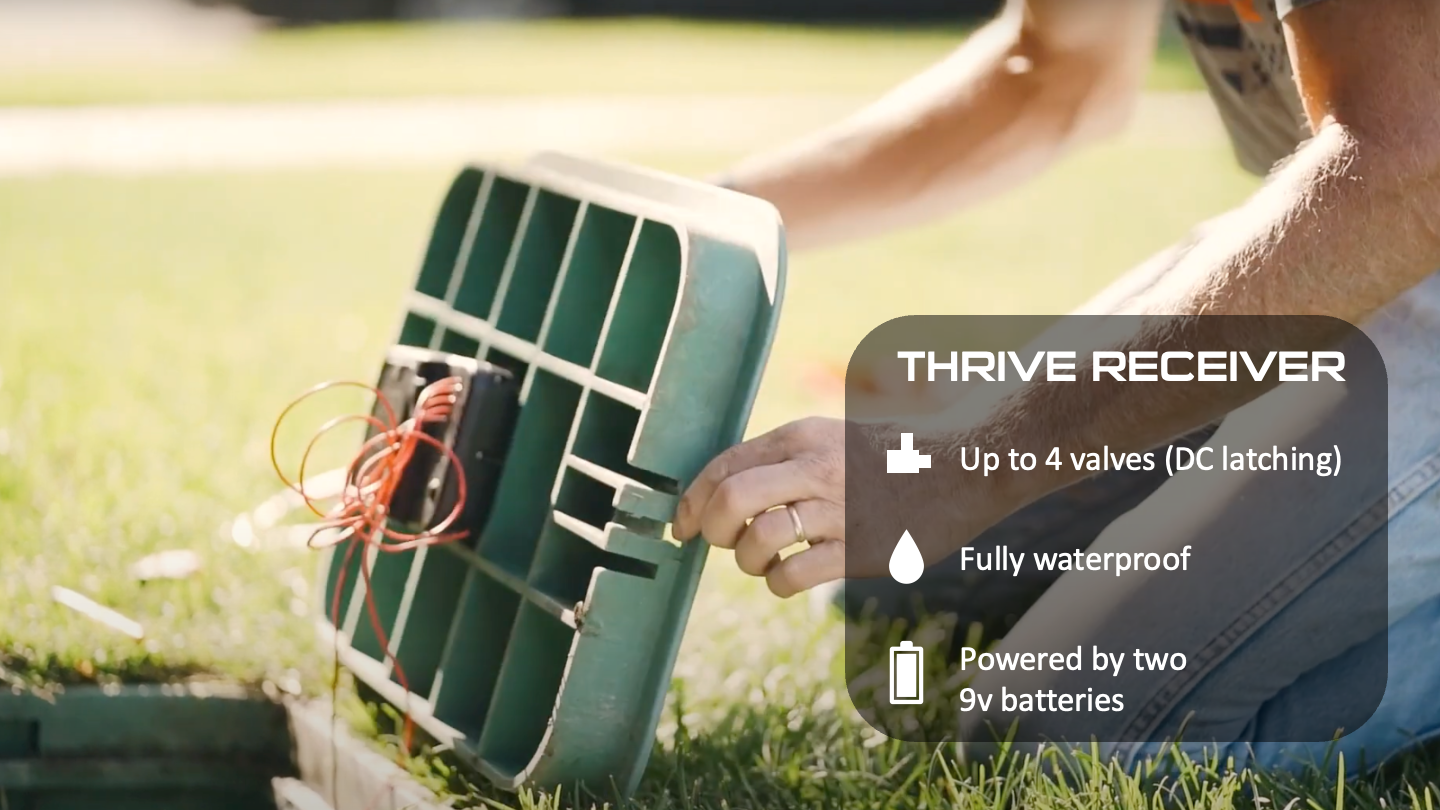

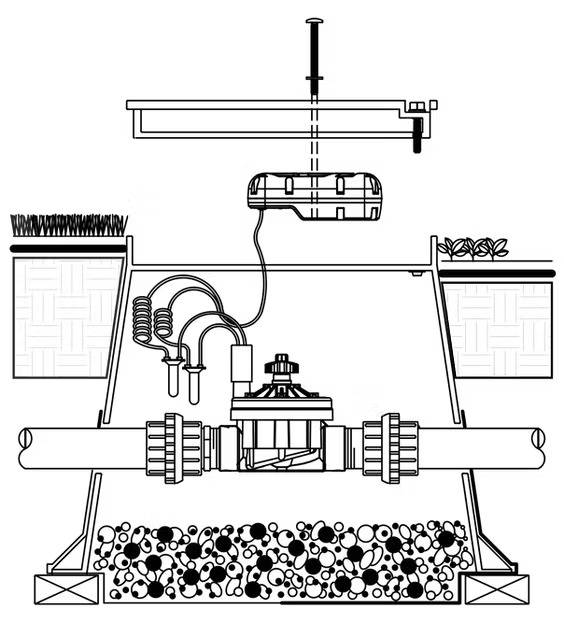

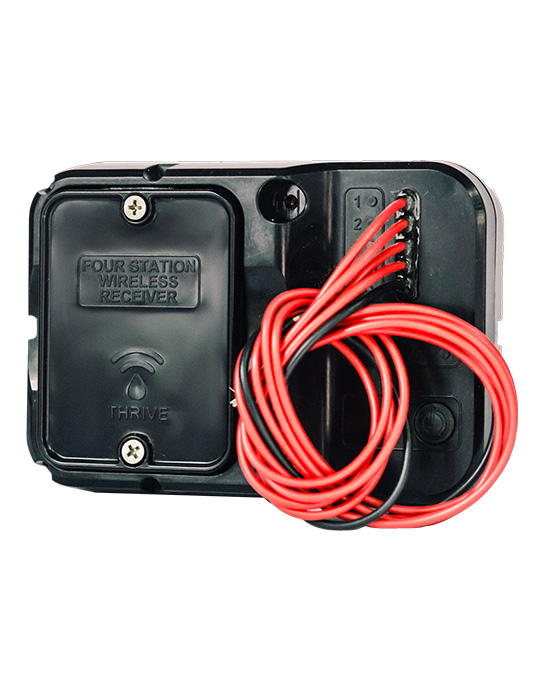

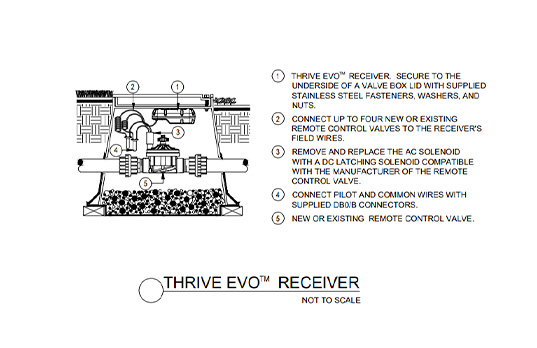

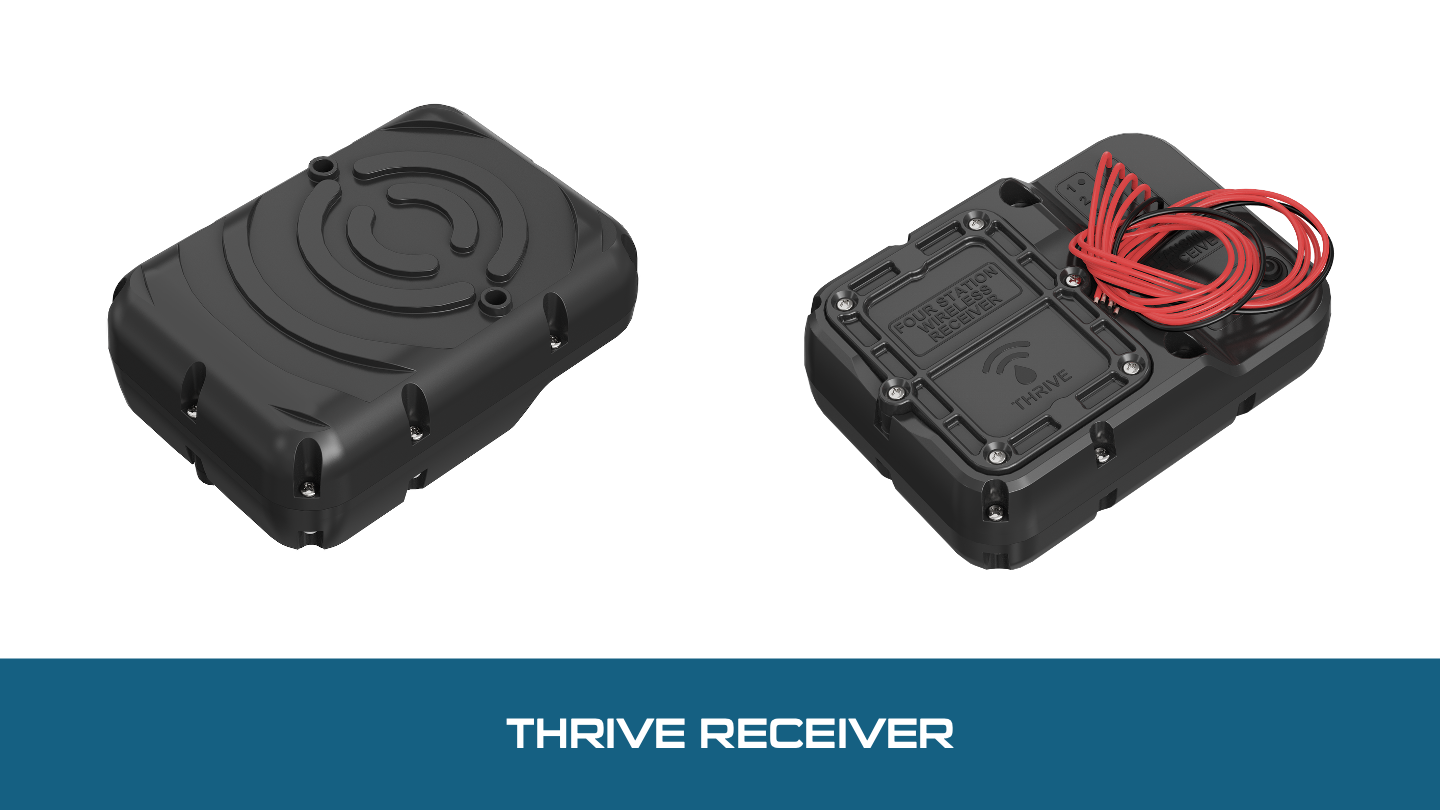

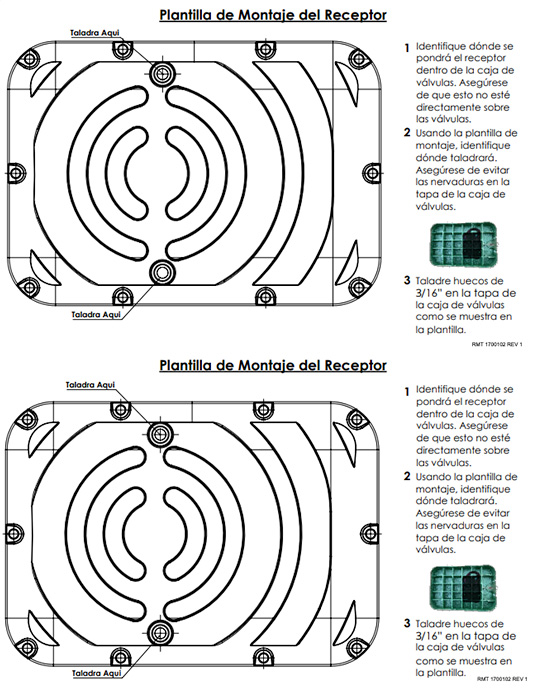

The Thrive Receiver™ is secured to the underside of any rectangular irrigation valve box so that it’s hidden from view and potential vandalism. Replace the AC solenoids with DC latching solenoids. It is powered by two 9V batteries that last one to two seasons.
No field programming of the EVO™ is needed. Simply use the power and capabilities of your smart irrigation controller to meet local water conservation requirements.
Installing the Thrive EVO
Implementing the Thrive EVO™ system is simple and efficient:
EVO™ Installation
English

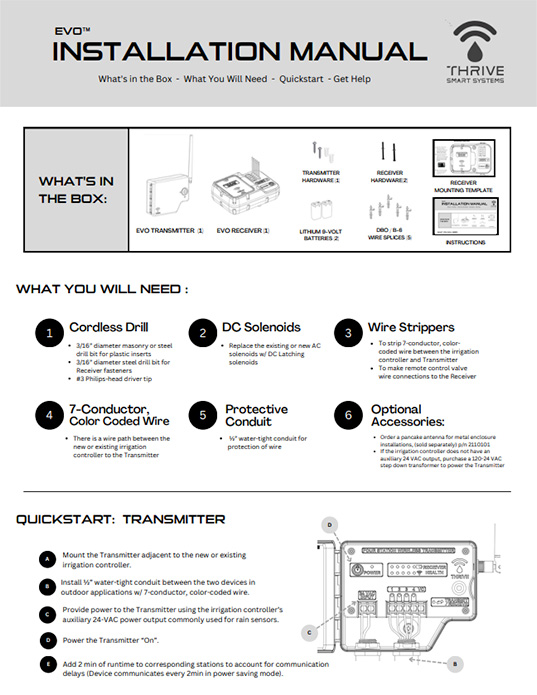

Installation

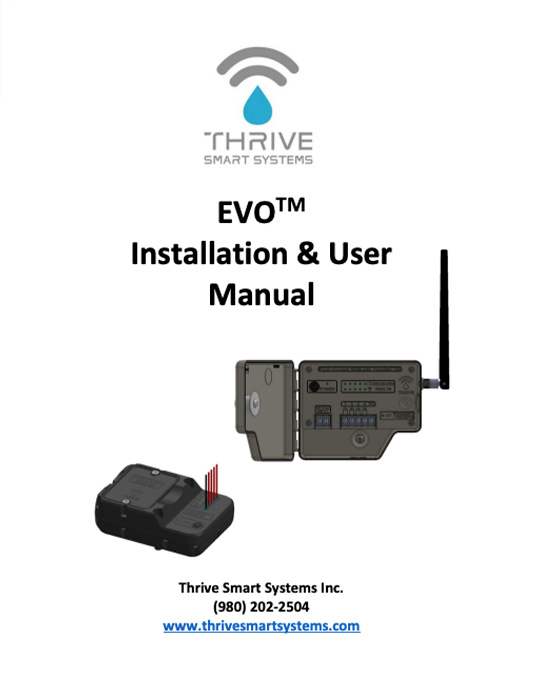

Check out our video and installation documents

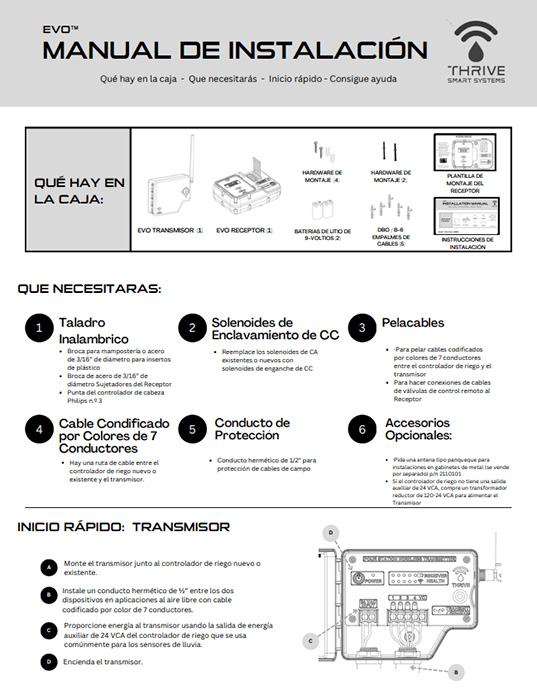

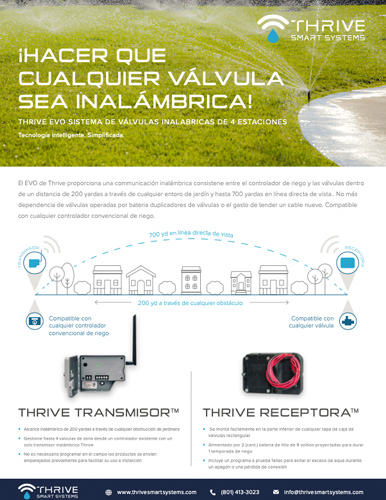

Español
Instrucciones
Vea nuestro vídeo y los documentos de instalación
Key Benefits of Using Thrive EVO™
Thrive EVO™ is designed to revolutionize irrigation management, providing cutting-edge technology that combines reliability, efficiency, and ease of use. Whether you’re managing a small garden or a large property, Thrive EVO™ ensures that your irrigation system works smarter, not harder. Here’s what sets it apart:
Compatibility
Universal compatibility with all controllers and valves, including 2-wire systems and pump start relays.
Reliable Communication
Manage up to 4 individual stations with stable wireless connections.
Water Conservation
Leverage your smart irrigation controller’s capabilities to reduce waste and promote sustainability.
Built for Durability
Weather-resistant components and rugged, IP67-rated casings ensure consistent long-term performance.
No Pairing Required
Devices come pre-paired with matching frequencies—no tedious field programming required.
Failsafe Program
The Thrive Receiver™ includes a built-in failsafe program to prevent overwatering during blackouts or connection loss.
No Interference

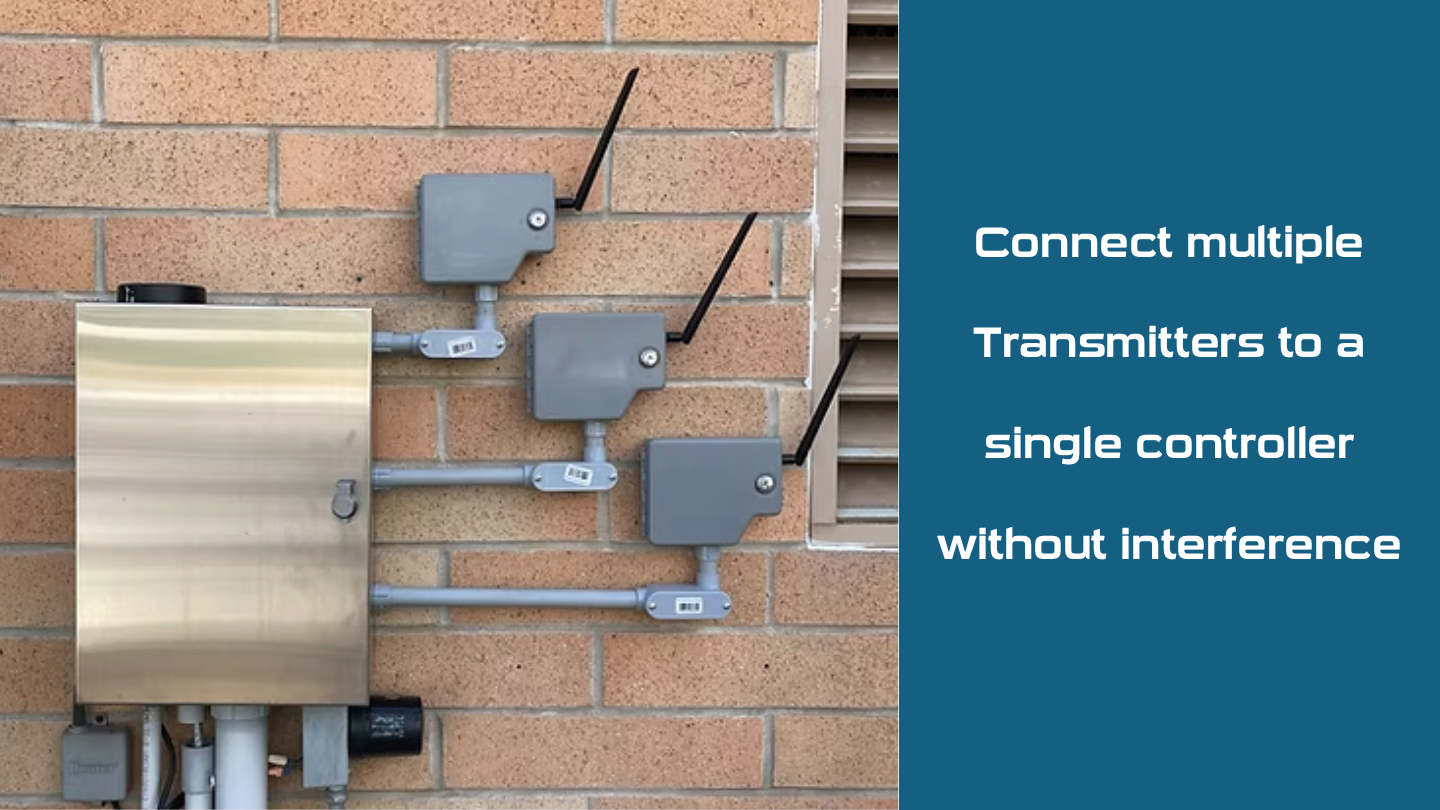

Multiple Thrive EVO™ devices can operate seamlessly on the same or adjacent sites without interfering with each other.
Take Control of Your Irrigation Today
With Thrive Smart Systems, you enjoy convenience, efficiency, and the flexibility to scale as your irrigation needs grow.

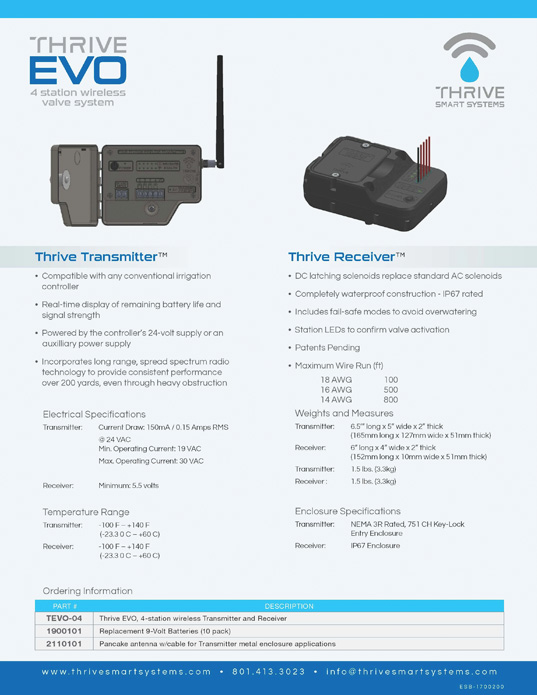

Specifications
Electrical Specifications
Thrive Transmitter
| Maximum AC Input Voltage | 30 VAC |
| Maximum Stations (Zones) Active Together | 4 (Four) |
| Temperature Range | –10°F — 140°F (-23°C — 60°C) |
| Terminal Black Input Voltage to register a station (zone) | 12V – 30V |
Thrive Receiver
| Maximum AC Input Voltage | 9 VAC |
Mechanical Specifications

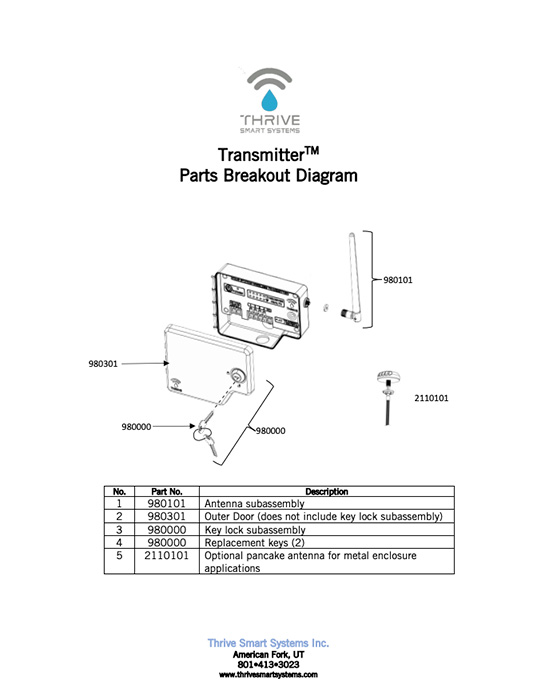

Thrive Transmitter
| Mechanical Dimensions | 6.6″ L x 5″ W x 2″ T (165mm L x 127mm W x 51mm T) |
| Weight | 1.5lbs (3.3 kg)
|
Thrive Receiver
| Mechanical Dimensions | 6″ L x 2″ W x 2″ T (165mm L x 102mm W x 51mm T) |
| Weight | 1.5lbs (3.3 kg) |
Antenna Specifications
| Thrive Transmitter | External Antenna, peak gain 2.1 dBi |
| Thrive Receiver | Internal Entenna, peak gain 1.5 dBi |
| Thrive Transmitter FCCID | 2A6RS-T101 |
| Thrive Receiver FCCID | 2A6RS-R102 |
